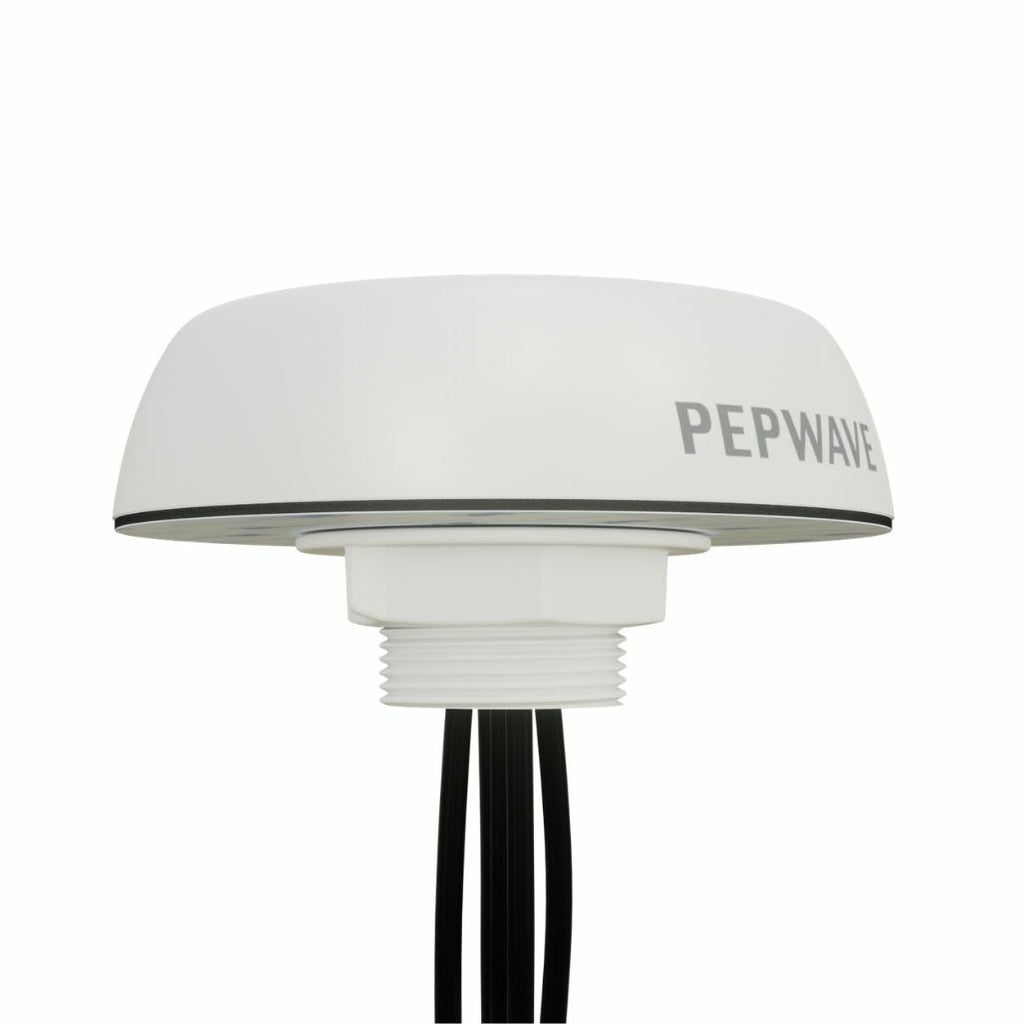

Pepwave Mobility 22G Antenna – 5-in-1 MIMO Omnidirectional – White

Description

The PepWave Mobility 22G is a 5-in-1 antenna built for mobile applications. It supports 2×2 cellular MIMO for high bandwidth and solid reliability, dual-band (2.4GHz & 5GHz) Wi-Fi and GPS. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.The Mobility 22G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options.
Features:
5-in-1 cellular and W-Fi antenna system with GPS receiver
2×2 Cellular frequencies: 600-6000 MHz
2×2 Wi-Fi frequencies: 2400-2500 MHz & 5000-6000 MHz
Durable and UV-stable housing
IP67 rated

Specifications:
Model: ANT-MB-22G-S-W-6
Frequency and gain:
Cable 1-2 (cellular):
1.2dBi: 617-960MHz
5.7dBi: 1710-2700MHz
5.6dBi: 3400-4200MHz
6.0dBi: 5000-6000MHz
Cable 3-4 (WiFi):
4.8dBi: 2400-2500MHz
7.4dBi: 5000-6000MHz
Cable 5 (GPS):
28 ± 3 dBi
Impedance: 50 Ohms
Cable and connectors:
Cellular: 2 x 2m (6.5′) CFD200 (LMR200-equivalent) with SMA/Male
WiFi: 2 x 2m (6.5′) CFD200 (LMR200-equivalent) with RP-SMA/Male
GPS: 1 x 2m (6.5′) CFD200 (LMR200-equivalent) with SMA/Male
Dimensions: 5.12” wide x 1.42” high (antenna only; cables not included in this measurement)
Mounting:
Mounting type: Panel, wall, pole
Mounting hole: 1 11/16″ / 43mm
Max panel thickness: 19/32″ / 15mm

Pepwave Mobility 22G Data Sheet
