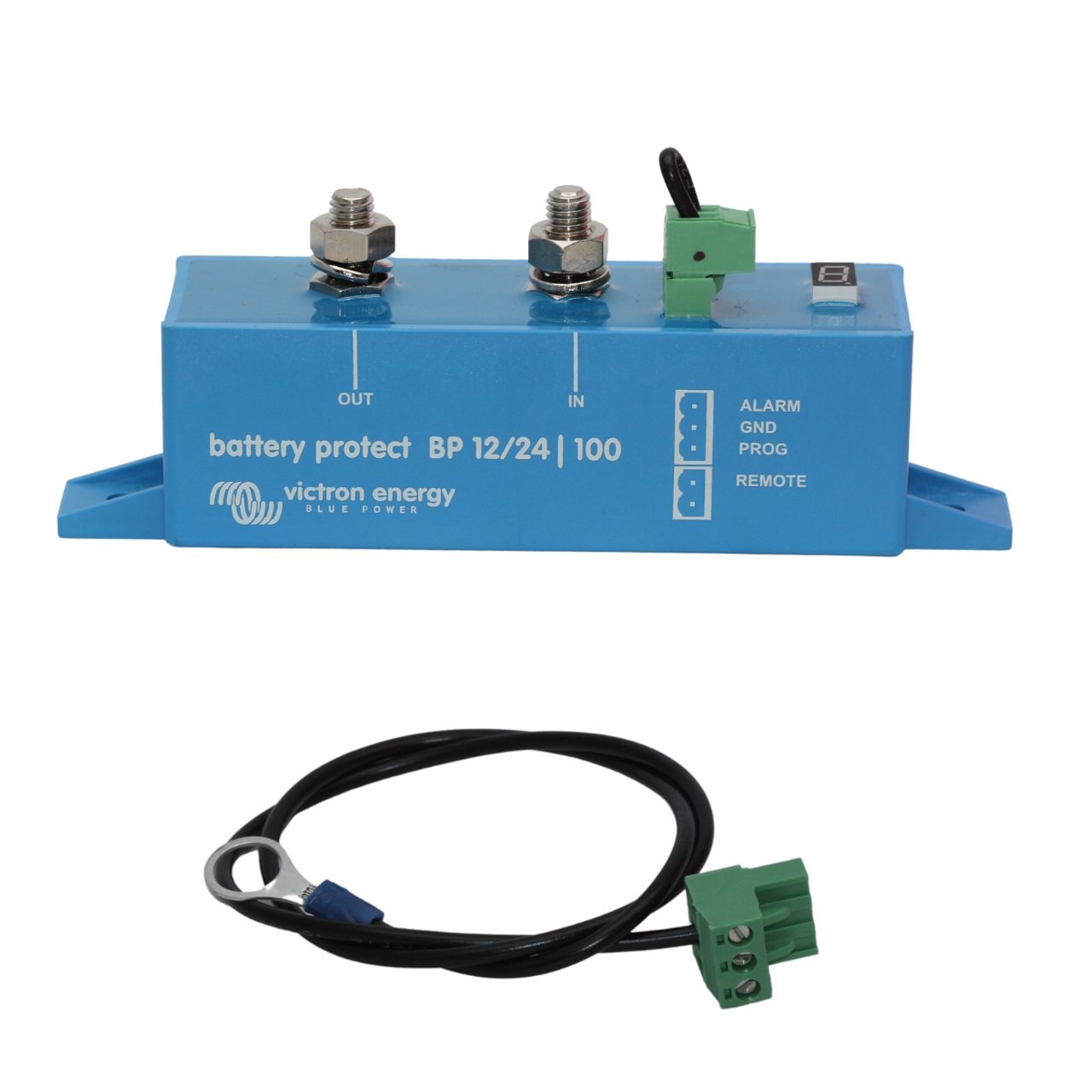

Victron Battery Monitor Protect 100A Discharge protection 12V 24V

Description

Victron Energy – Battery Protect 12 24V 100 Amp (BP-100) BatteryProtect is designed to prevent battery damage by disconnecting it from non required loads or it has insufficient power left to start the engine.   VE Battery protect features: Auto-ranging – Automatic voltage detection. Suitable for 12V and 24V systems Easy programming – It can be set to operate or disconnect at several different voltages. The integrated display will display the setting selected. Over voltage protection – disconnects the load when 16V / 32V lead is reached to prevent damage Delayed alarm output – Output alarm is activated when voltage drops below voltage set for more than 12 seconds, so it will not activate alarm during engine starts. Delayed load disconnect / reconnect – Load disconnects after 90 seconds after an alarm.  The load will be reconnected after 30 seconds, once the set voltage is reached.    Specifications: Alarm output delay – 12 Seconds Load reconnect delay – 30 seconds Load disconnect delay – 90 seconds Peak Current – 600A Operating voltage range – 6V – 35V Maximum Continuous load current – 200A Consumption (ON / OFF) – 1.5mA / 0.6mA Connection – M8 Dimensions – 59mm x 42mm x 115mm (H x W x D) Weight – 0.5Kg Warranty – 5 Years
